Automatic SS304 Paper Band Filter Wastewater Treatment Paper Band Filtration System

Model Number : Paper Band Filter

Place of Origin : China

Brand Name : SH

Certification : CE; ISO14001; ISO19001;ISO45001;EAC

MOQ : 1 set

Price : Negotiable

Packaging Details : OEM

Delivery Time : 5 work days

Payment Terms : T/T

Supply Ability : 2000 sets / year

Name : Paper Band Filter

Filtration Medium : Disposable Filter Paper / Paper Band

Applicable Liquid : Wastewater, Cutting Fluid, Coolant, Emulsion, Electroplating Liquid

Structure Material : Carbon Steel / Stainless Steel (SS304 or SS316 optional)

Filtration Efficiency : ≥ 98% for solid particles above filter rating

Type : Automatic Continuous Filtration Equipment

Contact Now

Automatic Paper Band Filter For Wastewater Treatment

Product Overview

The Automatic Paper Band Filter is a highly efficient filtration device used in wastewater and industrial fluid purification systems. It provides automatic separation of solid particles from liquids to improve water quality and protect downstream equipment.

Working Principle

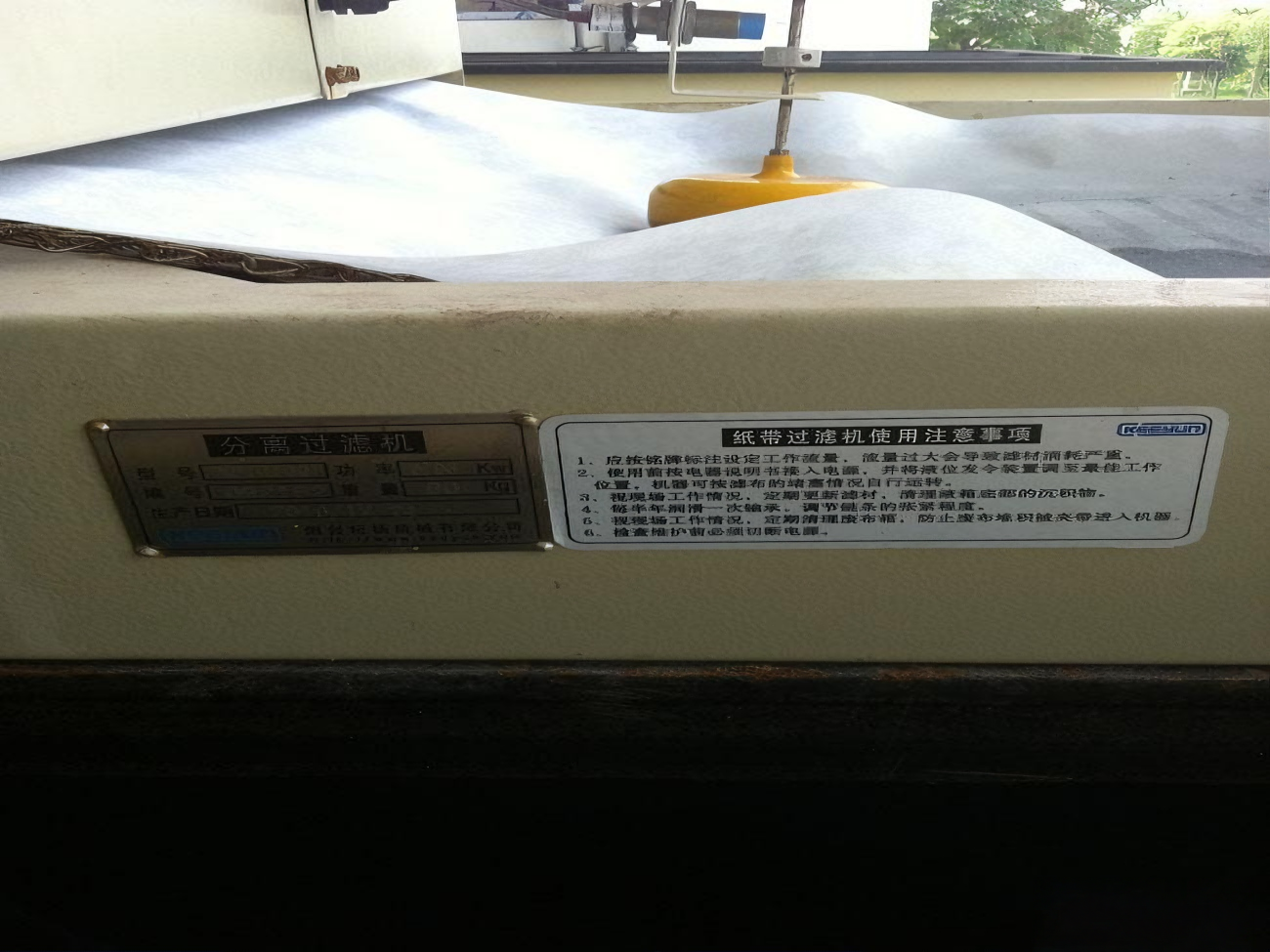

The contaminated liquid passes through a continuous filter paper band. Solid particles are retained on the paper surface, forming a filter cake. As filtration resistance increases, the liquid level triggers an automatic paper feed mechanism to replace the clogged filter media. The used paper is collected for easy disposal.

Features

Fully automatic operation with minimal labor
Compact design, easy installation and integration
Wide selection of filter paper grades (15–50 microns)
Energy-saving and low operational cost

Applications

Wastewater treatment plants
Industrial cooling and lubrication systems
Metalworking and grinding processes
Chemical and electroplating wastewater

Automatic SS304 Paper Band Filter Wastewater Treatment Paper Band Filtration System
