UF RO Systems Automatic Filtration System Data Monitoring Automatic Sand Filter

Automatic Micro-Differential Filter For Circulating Water Reuse

Product Overview

The Automatic Micro-Differential Filter for Circulating Water Reuse is specifically engineered for continuous, intelligent operation in industrial water recycling systems. It integrates filtration, differential pressure detection, and automatic cleaning, significantly improving water utilization efficiency and reducing maintenance costs.

Working Principle

Circulating water flows into the filter and passes through the filtration elements. Suspended solids are trapped on the filter surface. When the differential pressure sensor detects rising resistance, the system automatically initiates backwashing. The rotating nozzles spray high-pressure water to clean each element sequentially, discharging the collected impurities and restoring full filtration capacity without shutdown.

Main Components

• Filter vessel

• Filter element assembly

• Differential pressure control system

• Automatic backwash drive unit

• PLC control cabinet

• Drain and valve system

Features

• Intelligent differential pressure monitoring

• High filtration efficiency (as fine as 10 μm)

• Low water consumption for backwash

• Continuous operation — no downtime

• Modular and scalable design

• Compact, maintenance-friendly structure

Applications

• Industrial circulating and cooling water

• Water reuse and reclamation systems

• Pretreatment for UF/RO systems

• Process water recovery and recycling

• Municipal and landscape water treatment

Optional Configuration

• Full stainless-steel structure

• PLC-based automatic differential control

• Data monitoring and remote diagnostics

• Skid-mounted integrated system

• Smart alarm and status reporting

UF systems Automatic Filtration System

RO systems Automatic Filtration System

automatic sand filter Data monitoring

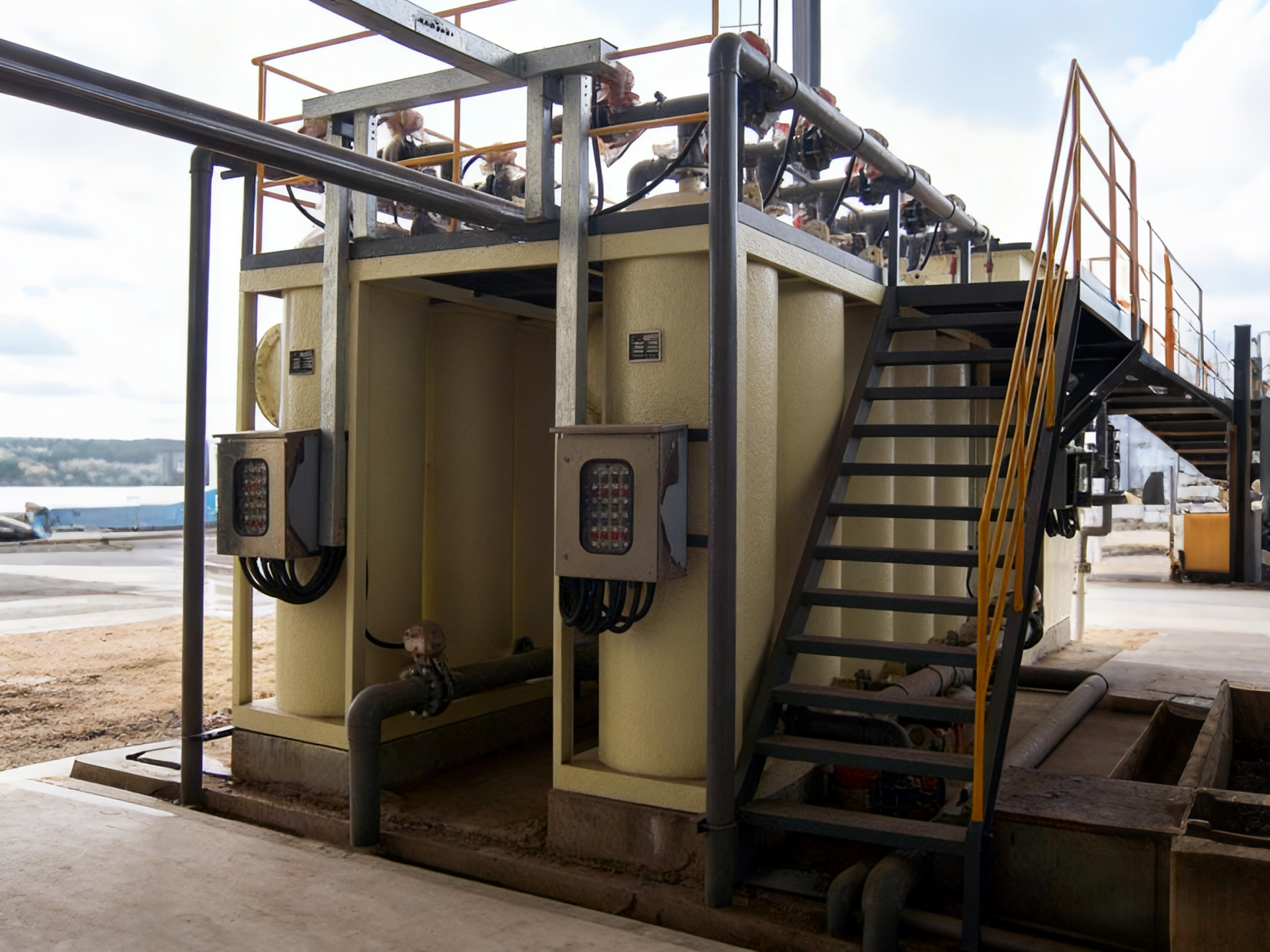

UF RO Systems Automatic Filtration System Data Monitoring Automatic Sand Filter Images
