1 – 200m3/H Mechanical Filtration System Circulating Water Reuse Filtration Corrosion Resistant

Place of Origin : China

Brand Name : SH

Certification : CE; ISO14001; ISO19001;ISO45001;EAC

MOQ : 1 set

Price : Negotiable

Packaging Details : OEM

Delivery Time : 5 work days

Payment Terms : T/T

Supply Ability : 2000 sets / year

Product Name : Mechanical Filter

Application Purpose : Circulating Water Reuse, Industrial and Cooling Water

Flow Rate : 1–200 m³/h（Customizable）

Filter Media : Quartz Sand, Anthracite, Manganese Sand, Multi-media

Contact Now

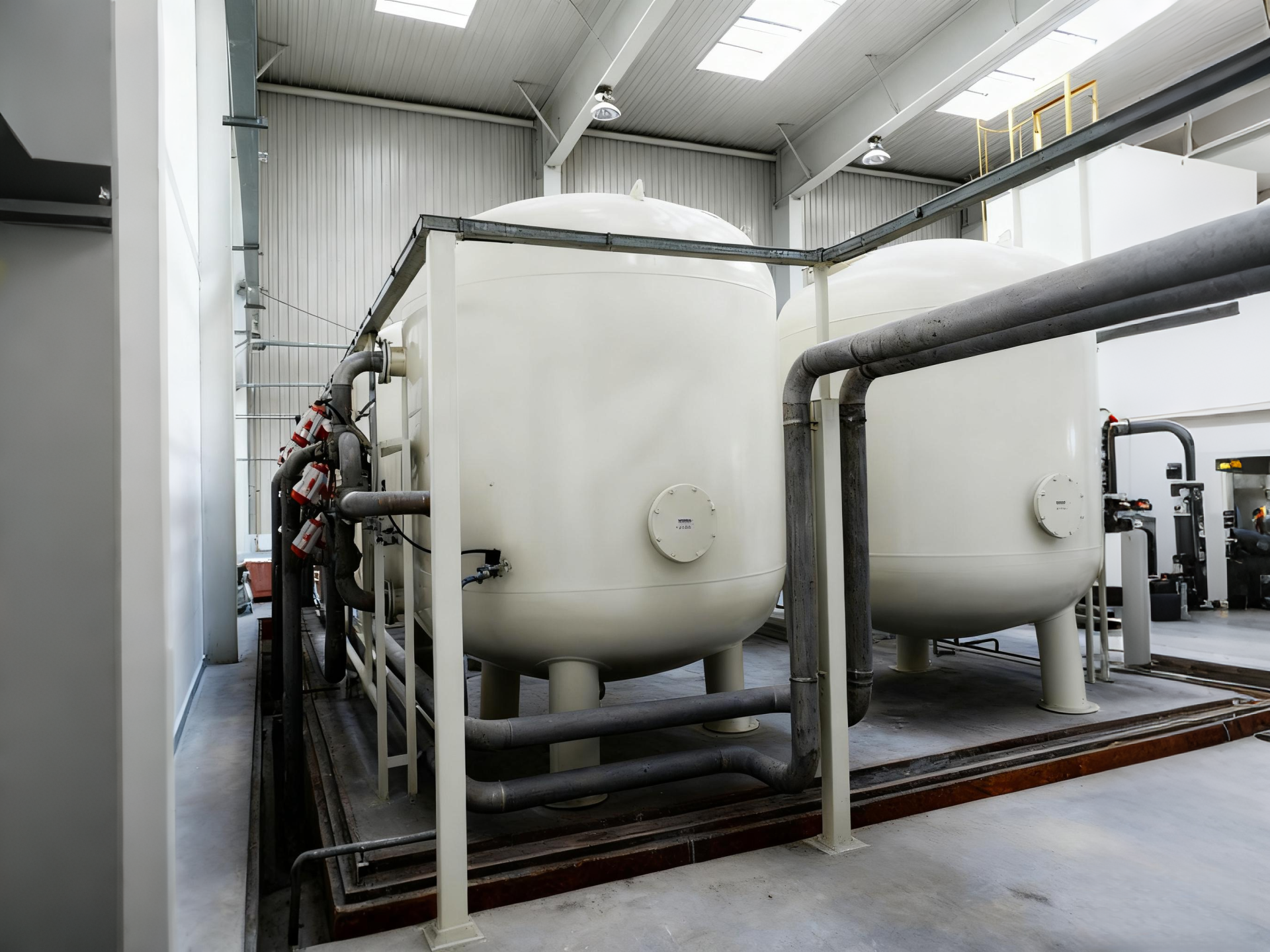

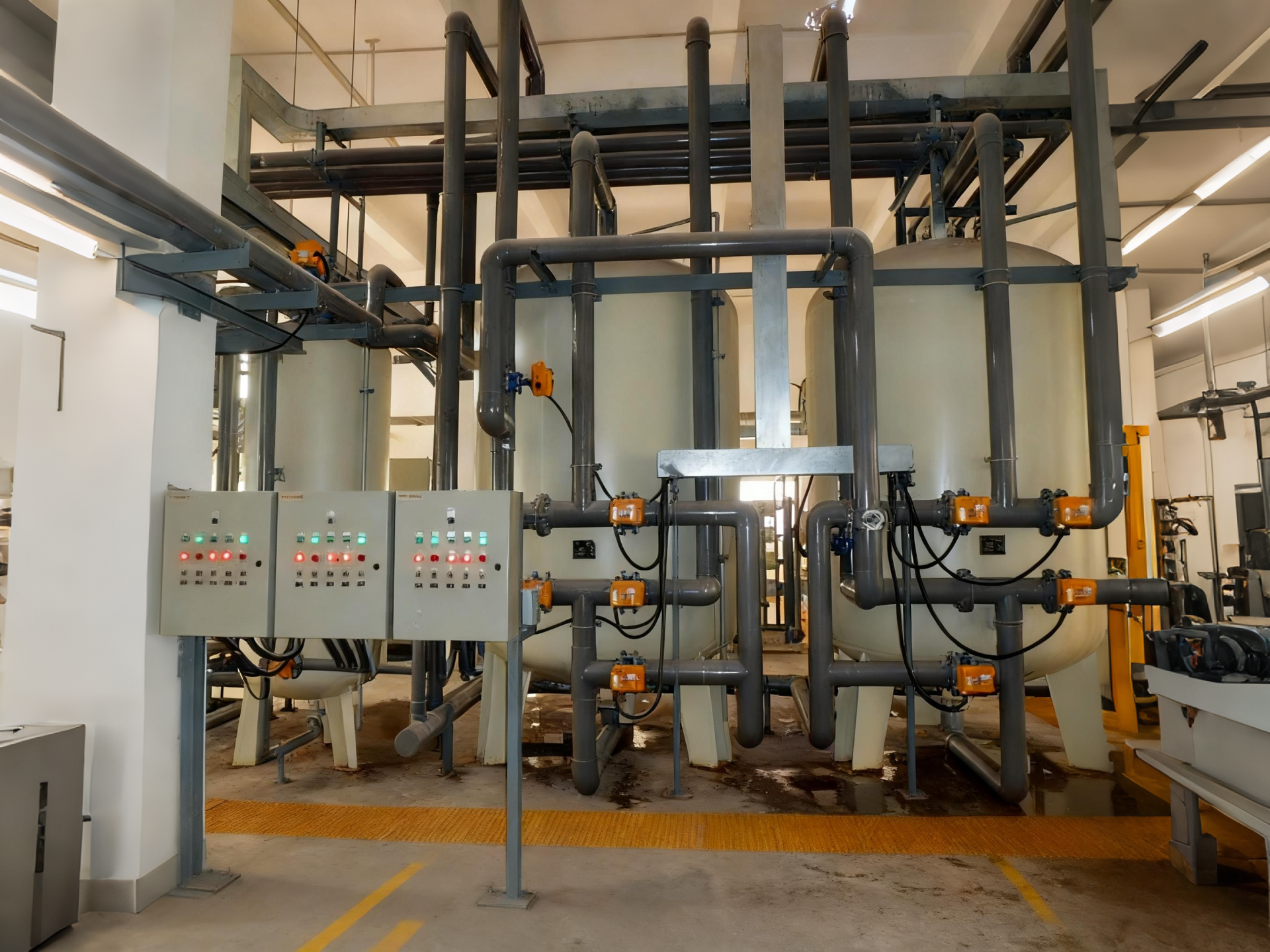

Mechanical Filtration System For Circulating Water Reuse

Product Overview

The Mechanical Filter for Circulating Water Reuse is an efficient solid–liquid separation device widely used in industrial water recycling systems. It effectively removes suspended solids, sediments, and colloidal particles, ensuring stable water quality and protecting downstream units such as ultrafiltration (UF) and reverse osmosis (RO). The system is easy to operate, stable in performance, and equipped with an automatic backwash function.

Working Principle

Under pressure, raw water flows through the multi-layer media bed consisting of quartz sand, anthracite, and gravel. Impurities are trapped and adsorbed within these layers. When the pressure difference between the inlet and outlet exceeds the preset value, the automatic backwashing cycle starts, using clean water or air-water flushing to remove trapped particles and restore filtration efficiency.

Main Components

Filter vessel (carbon steel, stainless steel, or FRP)
Multi-layer filtration media system
Water distribution and collection system
Pressure gauge and flow meter
Automatic valve assembly
Backwash control unit (optional PLC system)

Features

Multi-media design ensures high filtration accuracy and stable effluent quality
Automatic backwash system reduces manual maintenance
Compact structure and small footprint
Corrosion-resistant materials ensure long service life
Continuous operation and online cleaning available
Customizable specifications based on flow and water quality

Applications

Industrial circulating and cooling water treatment
Reclaimed and recycled water systems
Power plants, chemical, and metallurgical industries
Pretreatment for UF/RO membrane systems
General wastewater and domestic water purification

Optional Configuration

Automatic differential pressure backwash system
Stainless steel lining and internal piping
Intelligent PLC control cabinet
Multi-unit parallel configuration
Skid-mounted integrated system
